1934-1934C $5 FRNs

LFBP #637 Mules/Non-Mules

Backplate 637 entered routine service producing sheets on June 23, 1945, and supplied a steady stream of sheets until June 2, 1949. During that time those sheets were mated with a host of $5 silver certificates, legal tender, and federal reserve note faces to create a plethora of rare varieties. They have long been recognized and revered by collectors owing to the distinctive micro-size 637 plate serial number that contrasted with contemporary notes having macro-size four-digit plate serial numbers.

$5 Backplate #637 Proof

Image courtesy of Jamie Yakes

Five-dollar back plate 637 spent most of its life as a master plate that directly and indirectly fathered all small-size twelve-subject $5 back plates made between 1935 and 1951. It was the most important plate of its era. The design it carried was rendered obsolete in 1951 when back plates with new designs began to be made. Originally, back 637 had been used to impart a previous design change to $5 backs.


By 1928, sheet spoilage had become a serious problem for plate printers because of tight margins on finished sheets created by the narrow vertical separations between each subject on printing plates. The BEP resolved this in 1934 by increasing the vertical separations between subjects, on what were called new-gauge plates. This change required the production of new master plates and commenced with the production of a new-gauge $1 steel master face in July.


The change for $5 backs came on October 26, 1935, when the BEP started $5 new-gauge steel master back plate 630. Each subject impressed on 630 was spaced slightly farther apart in the vertical direction to create wider margins on the printed sheets. Back plate 637 was begun a few months later on January 24, 1935. It was immediately pressed into service as the new $5 master plate and would remain so for the next eight years. At this time serial number 637 was not etched into any subjects on the plate.


Backplate 637 was retired as a master plate in 1943 and saved as an economic measure. The following year it was salvaged and certified as a production plate on November 10, 1944. Plate serial number 637 was etched into each subject in micro-size numerals similar to those used on plates finished prior to January 1938. The plate met its demise five years later when it was canceled on June 14, 1949, fourteen years after it was made.

Micro-size Mule

Late-Finished BP #637

No other plate in the history of U.S. currency had a more varied life. Back 637’s legacy is vast: It fathered more than fifteen hundred $5 back plates between 1935 and 1951, and as a production plate produced some of the most desirable small-size mules. Back 637 sheets were mated with faces from $5 Federal Reserve Note (FRN) Series of 1934, 1934A, 1934B, and 1934C and across ten different districts (no examples known from Atlanta or Dallas), depending on series.  It was also mated with faces from the $5 Legal Tender Series of 1928C, 1928D, and 1928E across three different blocks and Silver Certificate Series of 1934A, 1934B, and 1934C across six different blocks.

Written by Jamie Yakes

1934 $5 FRN Blue-Green Seal Kansas City Non-Mule; Micro FP #14, Micro LFBP #637

1934A $5 FRN Chicago Mule; Macro FP #113, Micro LFBP #637

1934B $5 FRN San Francisco Mule; Macro FP #170, Micro LFBP #637

Courtesy of Derek Higgins

1934C $5 FRN Chicago Mule; Macro FP #216, Micro LFBP #637

The Census Report

Updated 11/06/2023

26 New Notes

Notes Included:

1934 Blue-Green Seal Non-Mules w/ LFBP #637

1934A Mules (LFBP #637)

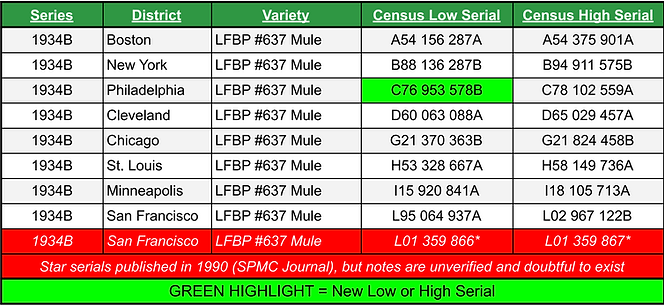

1934B Mules (LFBP #637)

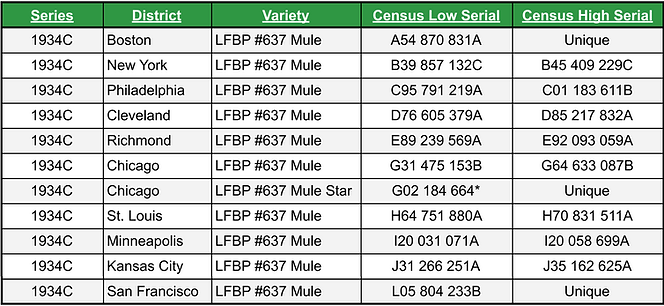

1934C Mules (LFBP #637)

Current Census Population

LFBP #637 vs BP #629 Mule Census Comparison

Scroll down to view the live census or download the latest complete census report:

Don't see your note of this variety on the census?  Please report it so it can be added!
